Factory direct small manufacturing plant cooking animal oil processing extraction machine

FOB Reference Price:Get Latest Price
$10,000.00 - $250,000.00 / Set | 1 Set/Sets (Min. Order)
Model Number:
WE-35
Power(W):
depends on the capacity
Lead Time:
Quantity(Sets) 1 - 1 >1
Est. Time(days) 10 Negotiable
Report Suspicious Activity
Overview
Quick Details
Warranty:
1 year
Applicable Industries:
Manufacturing Plant
Condition:
New
Usage:
Animal oil
Type:
Cold & Hot Pressing Machine
Automatic Grade:
Automatic
Production Capacity:
1-100ton per day
Place of Origin:
Henan, China
Brand Name:
weto
Voltage:
380v,440v,customized
Dimension(L*W*H):
depends on the capacity
Weight:
depends on the capacity
Certification:
CE,ISO,CCVO
After-sales Service Provided:
Field installation, commissioning and training
Product Name:
oil extraction machine
Material:
carbon steel or stainless steel
Color:
can be designed
Mesh:
stainless steel
Used:
liquid filteration system
working pressure:
0.4
working temperature(℃):
150
Raw material:
horse oil, chicken fat, beef tallow,fish fat, sheep fat...
Feature:
High Oil Yield Efficiency
method to extraction:
vacuum melting
Supply Ability
Supply Ability:
5 Set/Sets per Week animal oil extraction machine
Packaging & Delivery
Packaging Details
Factory direct small manufacturing plant cooking animal oil processing extraction machine
international package
Port
qingdao port or other ports in china
Lead Time :
Quantity(Sets) 1 - 1 >1
Est. Time(days) 10 To be negotiated

Factory direct small manufacturing plant cooking animal oil processing extraction machine

Product Description

 Animal fat oil extraction machine

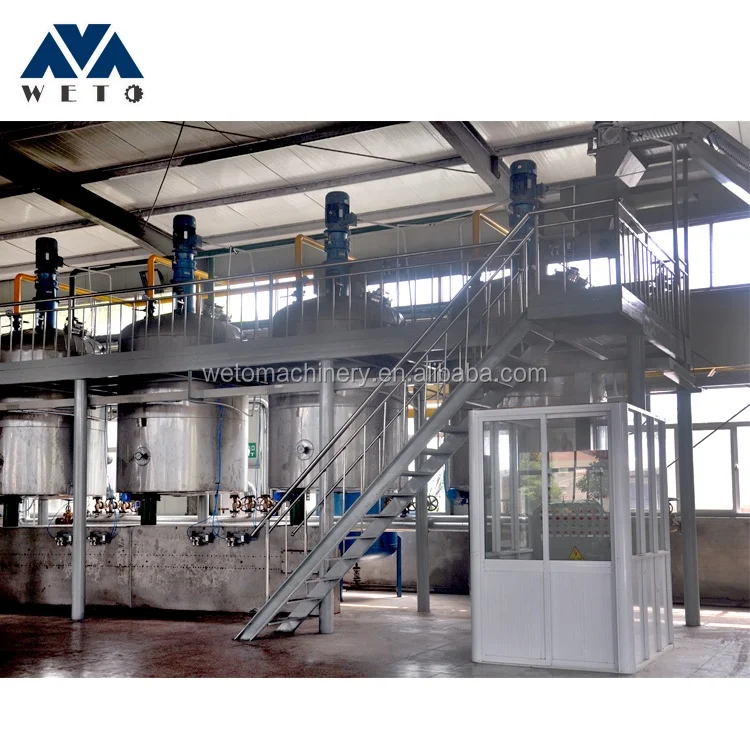

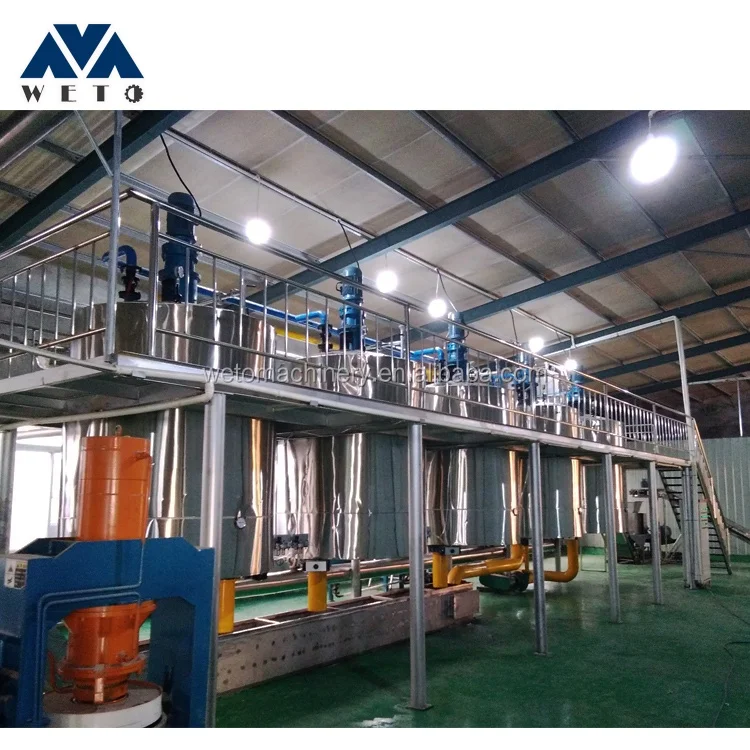

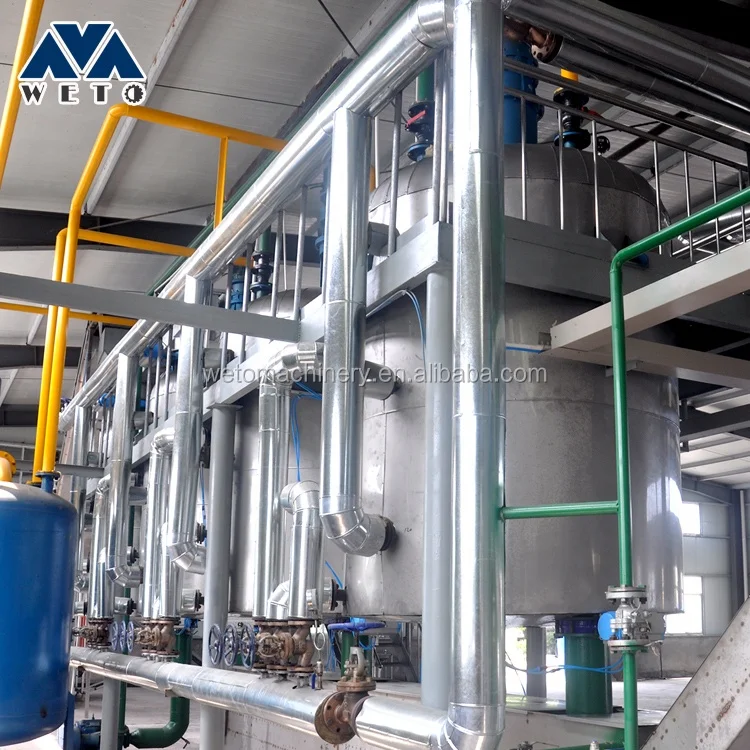

Animal oil production line, especially for animal fat and oil, after Drying, degreasing, grinding and other procedures the animal meat will be completely broken down into fat and bone meal. Oil can be made into industrial oils, feeding oils, biodiesel, etc. The meat and bone meal can be used to make high protein feed and organic fertilizer, both of which have high market potential.



♦   Crushing pre-heating process : Raw materials after grinding machine into pellet state,enters into the preheated pot, the purpose of preheating is to heat and mix raw material uses heat conduction oil to achieve a mixed liquid-solid state and suitable mechanical pump conveying,to reduce the resistance of the mechanical pump delivery,to reach the Pipeline transport process requirements. On the other hand, the preheater acts as a material balance for the entire production line.



♦   Negative pressure melting and refining process: The preheated pot preheated raw material into a solid-liquid mixed state,and into the melting pot, open the vacuum pump makes the cooker pot with negative pressure, heat conducting oil starts melting.



♦   Vacuum dehydration recovery process : Adopting water jet type vacuum jet pump to make negative pressure state in melting pot, vacuum tube supporting stainless steel tube condensation heat exchanger, vacuum condensation recovery system, evaporation of water vapor in raw materials, molecular mixture of odor molecules, volatiles under vacuum state from The raw material grease is separated and flows into the tube condenser catcher along with the vacuum pipeline.



♦   Oil residue separation Process: The process adopts a stainless steel sieve type oil residue separator separate crude oil residue from the extract oil residue mixture, and the oil residue with the size larger than 0.5mm is sent to the pressing part through a scraper conveying device, the fine oil residue and the crude oil mixture are pumped into the filter machine process fine filtration.



animal oil processing extraction machineanimal oil processing extraction machineanimal oil processing extraction machineanimal oil processing extraction machineanimal oil processing extraction machineanimal oil processing extraction machine
